Each selected record can be plotted by pressing on the "View" button. This will produce a plot of the acceleration, velocity and displacement histories. The acceleration history is plotted in units of G, while the velocity and displacement histories are shown in units of in/sec and in, respectively.

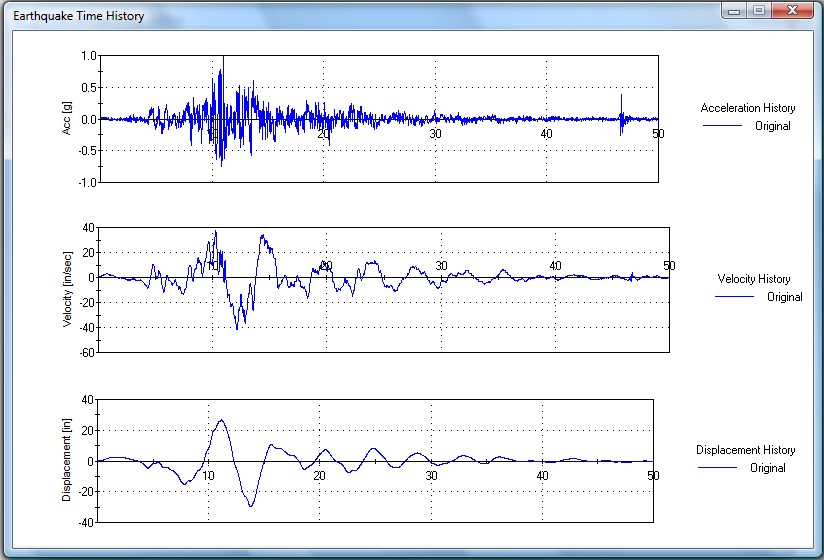

Figure 7: Plot of Ground Motion Acceleration, Velocity and Displacement Histories for record NF02
